Not working with Linear Ld050 garage door opener

Hello

The website says the wyze garage door controller is compatible with ld050 linear garage door opener but I am unable to make it work. Does any one have video or tutorial to make it work?

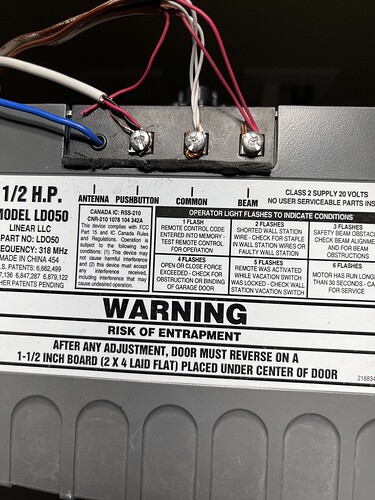

I have attached my garage door opener pic. Unlike the video where it shows 2 wires coming into the charge door opener, mine has single wire coming into the push button screw. I attached the wyze controller wires to the push button screw. But still not working. Any help please…

It looks like you have both wires from the Wyze GDC going into the same terminal. You should put the red one in the push button terminal and the black one in the common terminal

4 Likes

Thank you. I didn’t know where to put the black wire and put in same one. Will try and post here an update

1 Like

It worked. Thanks!

2 Likes
